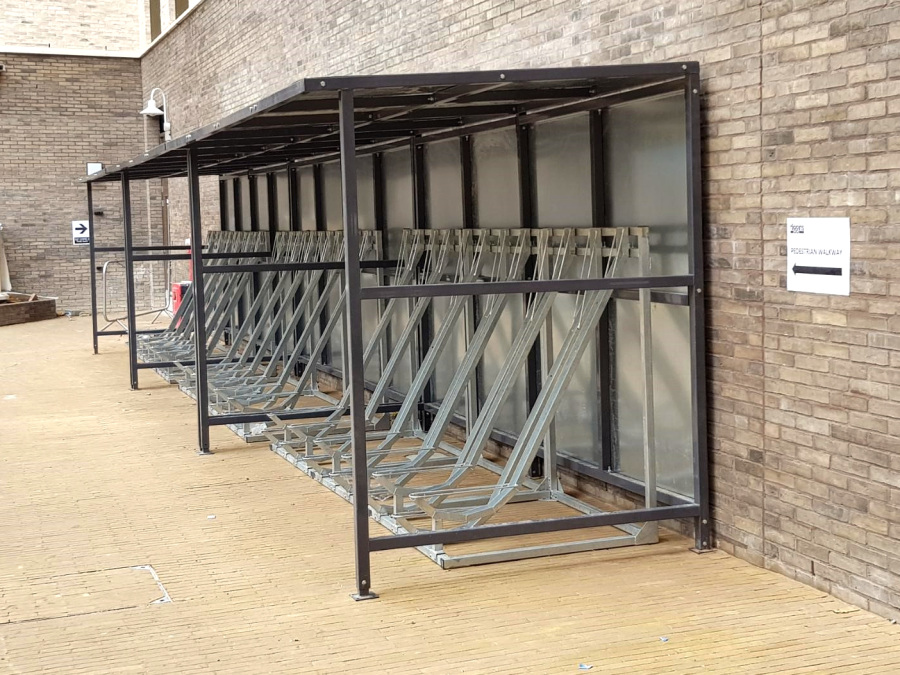

More space efficient than our BDS Shelter range, The Semi Vertical Rack Shelter can fit 12 bikes where the BDS only fits 10. Available in a range of sizes, we can manufacture the shelter to fit as many bikes as you need. How does it do it? Well, this shelter has our space-saving semi-vertical rack, which holds the bike almost vertically. The heights are staggered between each bike so they can fit in more (305mm centre spacing). The rack will fit standard bikes, including mountain bikes with thick tyres, racing tyres and kids' bikes.

Optional locking hoops are available for the rack. This is a secure steel bar that we add to the rack and enables the user to lock their bike with a D lock. When this is applied, the rack has 3 locking points: the frame and both wheels.

Mild steel cycle shelter with bolt down fixing or underground fixing option as standard, the feet are adjustable. Available in a galvanised, polyester powder coated RAL code colour finish or hot dipped galvanised and polyester powder coated RAL code colour finish. Anti-vandal clear polycarbonate UV stable roof, with optional polycarbonate sides and back and swing or sliding gates. Comes with optional cycle parking, galvanised semi vertical bike racks.

Bike Shelter DWG / CAD Files

Download our CAD files or contact us for help with planning. We also have an in-house designer who can check and assist with any architectural drawings free of charge.

Options:

This bike enclosure can be ordered in a 12 or 16 bike sizes, however other custom sizes are available. You can order the Semi-Vertical Shelter with or without bike racks and additional locking hoops. It comes with several options for finish - powder-coated, hot-dipped galvanised, or both hot-dipped galvanised and powder-coated in the colour of your choice. The enclosure can be selected with or without an LED light for added safety both day and night. The cycle shelter can be manufactured with polycarbonate back and side panels, swing gates made of either polycarbonate or steel mesh. You can add an extra layer of security for your users by opting for one of our security options - lock and keys, swipe card entry system or a coded padlock.

Specification:

Recommended for Schools, Colleges, Accommodation, Universities, Offices and Public Buildings
An extremely durable and resilient shelter, it has been structurally tested against the harshest conditions found in the UK and approved against BS EN standards
Optional end polycarbonate panels to provide additional protection from the elements or to restrict access
Optional cycle parking bike racks galvanised
Includes all assembly bolts, expanding foundation bolts for concrete plinth and arrangement drawing for assembly - no additional extras required
No-crawl under perimeter
with adjustable feet and allows for fixing onto uneven surfaces
Complies with secure storage as required by the Code for Sustainable Homes
50mm box tube to BS EN standards
Frame is hot dipped galvanised or polyester powder coated to BS EN ISO 1461:1999 standard finish in any RAL code colour or both, which is recommended
Shelter comes with adjustable overground/underground fixing feet
Single units can be placed alongside or opposite each other to form larger cycle storage areas
Shelters and Enclosure come with latch and coded padlocks; optional lock with 2 keys; or ask us about our swipe card ID locking system
This bike shelter can help contribute towards gaining ENE8 Cycle storage credits when used in the appropriate situation under the Code for Sustainable Homes

Size:
The Semi Vertical Rack Shelter - 12 bikes: Length 4100mm Height 2100mm Width 1800mm
The Semi Vertical Rack Shelter - 16 bikes: Length 6100mm Height 2100mm Width 1800mm
The Semi Vertical Rack Shelter - 24 bikes: Length 8100mm Height 2100mm Width 1800mm
Other sizes available - Call 0800 6126113 to discuss the size you need

Delivery Time:

2 to 4 weeks

Frequently Asked Questions (FAQ)

Can I Collect?

We understand many of our customers prefer to collect their orders rather than wait for delivery. Unlike many other suppliers most of our items are in stock! If you would like to collect your order please contact us to arrange a collection date and time. Our warehouse is located on the A13 Barking, London. Lots of free parking and easy to get to.

Keep in mind that if you've requested some customisations, like powder coating, you may need to allow extra time for us to complete the work. We can discuss this with you and ensure you get your order as soon as possible.

Please contact us if you have any questions.

How soon will I get my order if choosing delivery or install?

The time it takes to receive your order depends on the items you've ordered. Shelters are large items dispatched on pallets, so they sometimes take longer to deliver than smaller items like bike stands or bollards. We aim to dispatch all orders as soon as possible, and we'll keep you updated on the progress of your order.

Please consult the expected lead time on each product, normally shown at the bottom of the product website page.

If you need your order by a specific date, please let us know and we'll do our best to get it to you on time.

How can I get a quote?

Our friendly support team can prepare a specialised quote for you based on your requirements. Please contact us with the details of your project and we'll get back to you, normally within half a working day.

One of our best assets is our inhouse design team. We can quickly work out the best use of space and present you with a comprehensive option.

We can also provide a quote for customised products, like shelters with powder coating or different sizes than shown, or quotes for multiple item types.

Can you provide installation services?

We can provide installation services as part of a full quote. Please contact us with the details of your project and we'll get back to you as soon as possible.

Due to travel times and depending on the scale of your order, it may be cheaper to arrange installation from a local contractor and we will always tell you if this is the case.

Do you offer design services?

We have an in-house designer who can check and assist any architect drawings free of charge.

In many cases we can provide DWG, PDF and Revit files to assist in your planning process. Check our downloads page for more information. If you don't see what you need please contact us and we'll do our best to help.

How can I get an invoice?

When you order online, our store will automatically send you an invoice by email. If you need a copy of your invoice, please contact us and we'll be happy to help.

If you've ordered by phone or email, we'll send you a proforma invoice by email as soon as possible and a VAT invoice on sale.

Want to talk about this product?

We're on hand to answer any specific questions you might have about our products. If you don't see the information you need or have a general query, don't hesitate to get in touch.

The Semi Vertical Rack Bike Shelter - 12 Bikes
