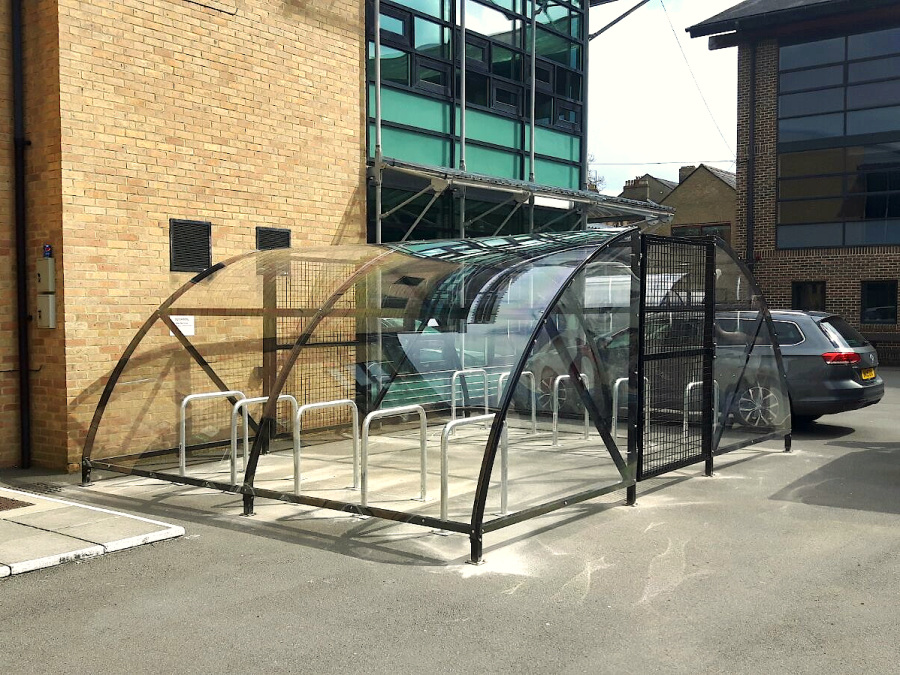

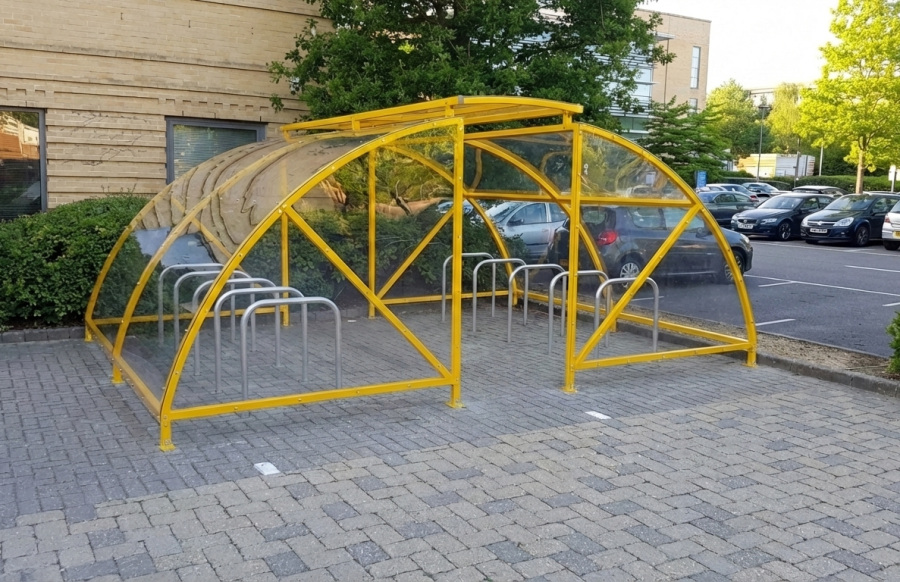

The BDS 20 Space enclosure is one of our best-selling cycle enclosures as it comes with excellent all-around features to suit any environment and is very customisable with many add-on options. The large shelter is made from mild steel and is with bolt-down fixing. The enclosure is available in a galvanised or polyester powder-coated RAL code colour finish. It comes with an anti-vandal clear polycarbonate roof, with optional polycarbonate sides and swing or sliding gates. It is ideally paired with galvanised bike stands, which are the perfect way to provide cyclists with a safe and secure location to store their bikes.

Bike Shelter DWG / CAD Files

Download our CAD files or contact us for help with planning. We also have an in-house designer who can check and assist with any architectural drawings free of charge.

Options:

The bicycle enclosure can be ordered with or without galvanised stands. It comes with several options for finish - raw, powder-coated, hot-dipped galvanised, or both hot-dipped galvanised and powder-coated in the colour of your choice. The enclosure can be selected with or without an LED light and a spring door closing mechanism for added safety both day and night. The enclosure can be installed with additional helmet lockers. The enclosure can be manufactured with a vented roof and a central glazing strap. There is an option to further protect bikes in storage by adding polycarbonate end panels, a door-closing mechanism and swing gates. You can go a step further in your security and have a coded padlock, swipe card system, or lock and key.

Specification:

Optional polycarbonate end panels
Optional galvanised cycle parking bike stands
Optional assembly bolts, expanding foundation bolts for concrete plinth and arrangement drawing for assembly
No climb end frames with anti-vandal PET panels
No crawl under perimeter
Complies with secure storage as required by the Code for Sustainable Homes
50mm box tube
Frame comes with or without optional finishes - hot dipped galvanised or polyester powder coated to BS EN ISO 1461:1999 standard finish, or both which is recommended
Shelter comes with adjustable overground fixing feet
Built-in solar LED lighting (optional)
Gate closing gas strut (optional) - this ensures gates are securely closed behind cyclists as they enter and exit the enclosure
Single units can be placed alongside or opposite each other to form larger cycle storage areas
Shelters and Enclosure come with latch and coded padlocks; optional lock with 2 keys; or ask us about our swipe card ID locking system
This bike shelter can help contribute towards gaining ENE8 Cycle storage credits when used in the appropriate situation under the Code for Sustainable Homes

Product code:

Size:20 Bike Space Enclosure E3 (2112): Length 4100mm x Height 2200mm x Width 5200mm Double aspect

Delivery Time:

2 to 3 weeks
